1950

1950
SKU 1950 Categories , ,

Trigonal or quinquangular

Additional information

Weight43 kg
Dimensions600 mm
Material

Black powder coat steel

Diameter

114

Enquire about 1950








    *Required fields

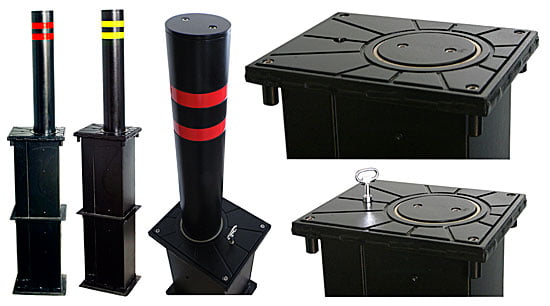

    Semi-automatic Bollard

    To raise the bollard, proceed as follows:

    1. Insert the key in the lock. The key must be inserted fully home to avoid damage to the lock
    2. Lightly press your foot on the post head. The post head should slightly sink into the ground
    3. Keep the post head depressed and turn the key clockwise
    4. When the key is at its limit of travel, release the bollard
    5. The bollard starts rising. You can remove the key

    To lower the bollard, proceed as follows:

    1. Insert the key in the lock. The key must be inserted fully home to avoid damage to the lock
    2. Turn the key clockwise
    3. When the key is at its limits of travel, press your foot on the bollard
    4. The bollard starts lowering. You can remove the key
    5. When the bollard is in the down position, a sound indicates that the bollard is locked
